I want to build a pedalboard for my Setup with 2 Nord Stage (Nord Stage 2 and Nord Stage 3 compact) and I looking for ideas (DIY or buying).
Perhaps you can post an image of your pedalboard/setting you use, the length and width, and can tell something about it works for you: advantages and disadvantages
Thanks and Greets!
Last edited by bigmagic on 03 Mar 2022, 15:25, edited 1 time in total.
This is mine pedalboard (pedaltrain). Not sure which model it is, since I got it from the dutch "craigslist".
It's about 24 inch by 12,6 inch (61cm x 32 cm)
Nothing fancy. I recently removed the iConnectivity iConnectMIDI2+ from the pedalboard and mounted it on a 19" plate inside a case (where also my DI and cable looms (jack, midi, power) are in). Together with a new mioXM midi interface.
In the middle is the Airturn BT200S-2 bluetooth pedal for switching songs in Bandhelper that is running on my macbook pro (which is connected to the mioXM interface).
I've recently bought the cable sleeves to give it a more cleaner look and attached labels at the end for easier plug-and-play during setup of the rig.
Pedalboard - overview

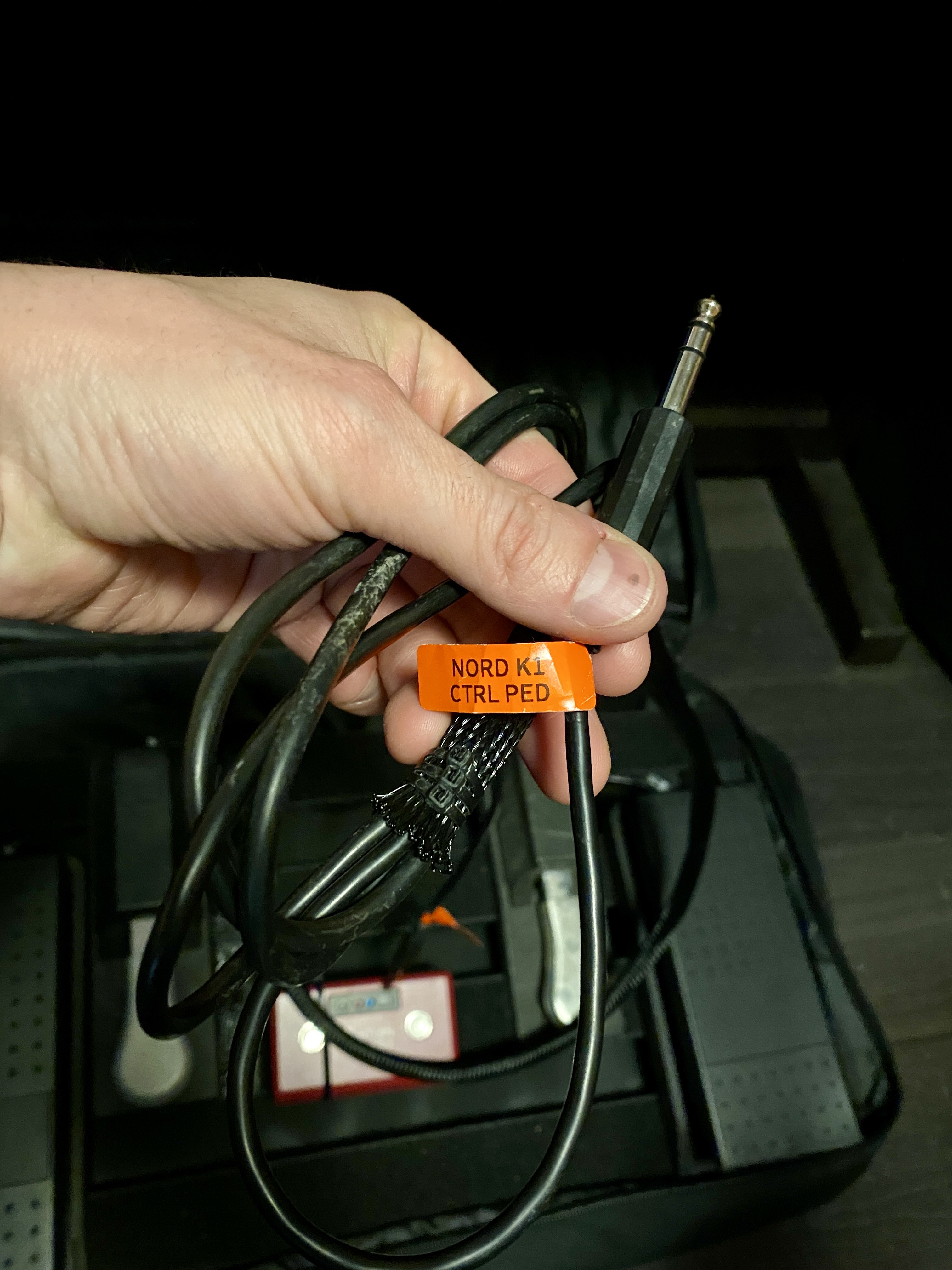

Pedalboard - cables
Last edited by Berretje on 03 Mar 2022, 22:45, edited 3 times in total.
These users thanked the author Berretje for the post (total 2):
This is mine pedalboard (pedaltrain). Not sure which model it is, since I got it from the dutch "craigslist".
It's about 24 inch by 12,6 inch (61cm x 32 cm)
Nothing fancy. I recently removed the iConnectivity iConnectMIDI2+ from the pedalboard and mounted it on a 19" plate inside a case (where also my DI and cable looms (jack, midi, power) are in). Together with a new mioXM midi interface.
In the middle is the Airturn BT200S-2 bluetooth pedal for switching songs in Bandhelper that is running on my macbook pro (which is connected to the mioXM interface).
I've recently bought the cable sleeves to give it a more cleaner look and attached labels at the end for easier plug-and-play during setup of the rig.
Thank you,
one question: on the picture I see you use booth Yamaha FC-7 as Control Pedals. How do you control your Out-Volume (for example to Fade in/out or dynamic) of your keyboards?
I thought, only the Swell Pedal can change the Volume.
Greets!
Here's mine - a bit older picture as I'm now using a NS3 Compact, though the stand and pedalboard is exactly the same.
Footswitch for offstage Ventilator fast/slow, Yamaha FC7 for organ swell, Nord sustain pedal, second FC7 for control pedal. All permanently mounted on a rolling base with custom multi-pin cables - one snake runs from keyboard to junction box on front right of pedalboard and second snake runs 30' to offstage rack.
These users thanked the author ericL for the post (total 3):

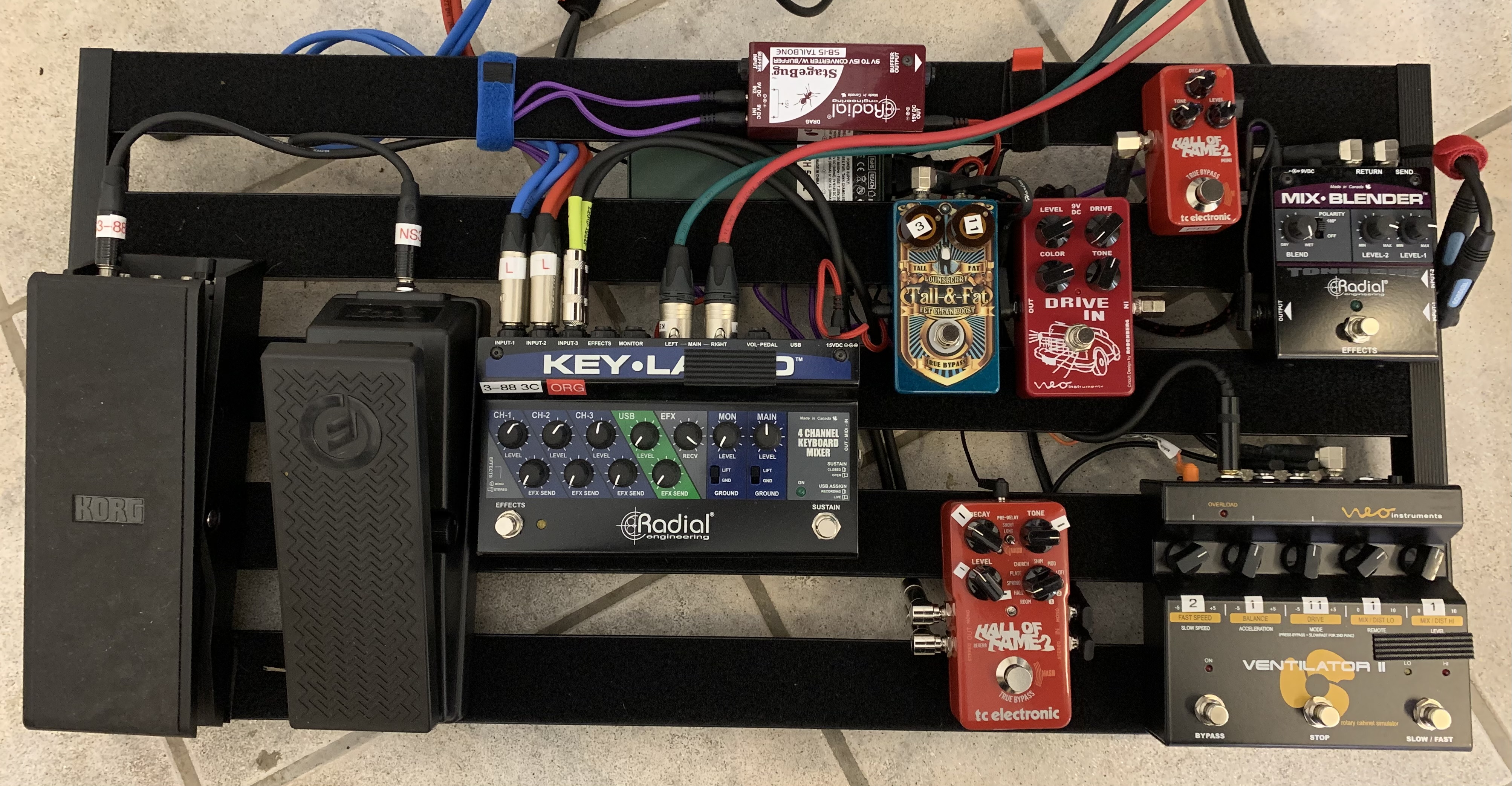

This is my pedalboard, connecting output 1+2 of two Stage 3 (88 and Compact) to the KeyLargo inputs 1+2 for all except organs. The whole section next to the right side of the KeyLargo is for the organs of both Stage 3, both routed to output 3 and feeded into the MixBlender, from there they go through the effects and Neo Vent into input 3 of the KeyLargo. Pedals are both control pedals, one for each of the Stage 3. Sustain pedals are placed next or in front of the pedalboard on the right hand side.
Last edited by Schorsch on 04 Mar 2022, 23:58, edited 4 times in total.
These users thanked the author Schorsch for the post:
bigmagic wrote:
Thank you,
one question: on the picture I see you use booth Yamaha FC-7 as Control Pedals. How do you control your Out-Volume (for example to Fade in/out or dynamic) of your keyboards?
I thought, only the Swell Pedal can change the Volume.
Greets!
Just assign the ctrl pedal to the part on the Nord Stage 2 I want to control in volume using the morph function.
