Hi all,
I proudly present you my custom made infrared switch to toggle the Leslie on eg. a Nord Stage 2, by waving your hand in front of the sensor.
See it in action here:
(don't mind the noise in the background; the device itself is completely quiet)
IMG_2959.MOV IR switch in action (2.87 MiB) Downloaded 468 times
Schematics & build instructions:
IR switch.pdf Schematics & build instructions - updated 18/08/2016 (1.14 MiB) Downloaded 339 times
Feel free to copy & build your own!
Kind regards,
Steven
Last edited by
Graspieper on 18 Aug 2016, 23:27, edited 4 times in total.
Stevearcade
Posts: 1Joined: 08 Aug 2016, 16:36
9
Your Nord Gear #1: Nord Electro 2
Post
by Stevearcade 08 Aug 2016, 16:48
Thank you very much for this. You've produced a great guide here. I saw your post on a Facebook group and signed up here specifically for this. I didn't even know there was a Nord Forum. Very cools stuff.
I expect this will work fine with my old Electro 2 and will add it to my list of electronic tinkering projects I have to do for the home studio.
From one Steven to another, thanks
Berretje
Moderator
Posts: 1273Joined: 09 Nov 2013, 00:48
12
Your Nord Gear #1: Nord Stage 2Your Nord Gear #2: Other BrandLocation: MierloHas thanked: 1184 times Been thanked: 422 times
Contact:
Post
by Berretje 08 Aug 2016, 17:11
This is very nice. I've been following the FB post
magic_dillitzer
Posts: 37Joined: 26 Mar 2009, 12:29
17
Your Nord Gear #1: Nord Stage ClassicYour Nord Gear #2: Nord Electro 5Location: MunichHas thanked: 22 times Been thanked: 9 times
Contact:
Post
by magic_dillitzer 08 Aug 2016, 21:11
Great! If I only would have the time to build one ...
Graspieper
Patch Creator
Posts: 135Joined: 04 May 2015, 07:29
10
Has thanked: 18 times Been thanked: 85 times
Post
by Graspieper 18 Aug 2016, 23:29
PCB board layout has been updated; capacitor C2 was drawn incorrect.
Berretje
Moderator
Posts: 1273Joined: 09 Nov 2013, 00:48
12
Your Nord Gear #1: Nord Stage 2Your Nord Gear #2: Other BrandLocation: MierloHas thanked: 1184 times Been thanked: 422 times
Contact:
Post
by Berretje 19 Aug 2016, 09:31
Hey Steven,
Thanks again for your help last evening on facebook messenger!

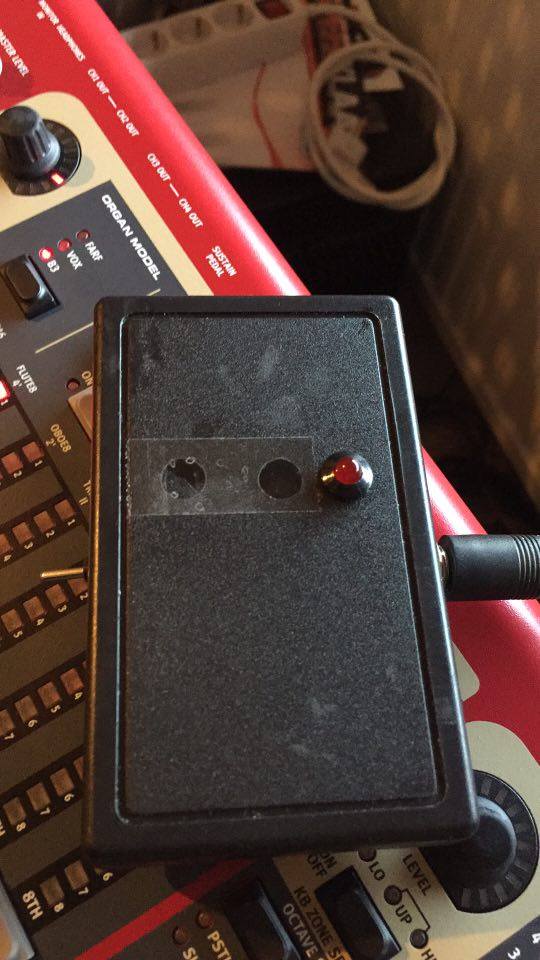

Here is a picture and video of the box in action.
