FZiegler wrote:We will see what Marcel can tell.

Hi FZiegler,

you are right, there was a issue. Programs bigger I:11 are calculated wrong for the Nord Electro 6.
I just fixed it in Desktop Version 1.2.7 and Mobile Version 1.4.
You can download the Desktop version from my homepage https://schroederonline.de right now.
The iOS fix will be available in the next 24-48 hours because the review process on the App Store takes this time.
Thanks for reporting the issue.

Bye Marcel

My second issue was with the Stage 3 - if I didn't calculate wrong. Which I absolutely didn't make clear - sorry!

FZiegler wrote:My second issue was with the Stage 3 - if I didn't calculate wrong. Which I absolutely didn't make clear - sorry!

Hi I do not see any issue here. On NS3 the Program p:13 is midi program 2, LSB 3 ( on a midi scale 0-127)
Just rechecked it with my NS3 and my MPC.

Thanks for verifying! That's the same result I calculated by hand. But your tool (PC version 1.2.5) says: "Bank 1, SubBank 4, Program 3".

I didn't pay attention, though, to your note saying "MIDI (1-128)" which is noted above. So, I get everything translated into correct figures, just subtracting 1 (if I need MIDI 0..127).

Sorry for the confusion! I just never understood why I should calculate MIDI values in that way. But that's how it is.

On Thursday i will check it out, thanks for fixing

Hi all
Yesterday i tested the iOS App with my Electro 6 D and i must say, that all Digits i try are correct!! So thank you Marcel, great work!
Cheers - Heinz

Hi Marcel
There is is Problem again with wrong digits (electro 6). Midi Mapper says : H:12 = MSB = 1 LSB = 1 etc…
Thats wrong. It must be MSB = 0 , LSB =0 ….. I think the same Proble as some versions before…

I use SetList Maker - this message selects Z44 -> Bank MSB = 0 Bank LSB = 3 Prg = 31
I keep this screenshot on my phone as I always forget bank numbers on the E6
I think your App isn't handling Bank MSB/LSB correctly

vcfvca wrote:I use SetList Maker - this message selects Z44 -> Bank MSB = 0 Bank LSB = 3 Prg = 31

The attachment IMG_0201.png is no longer available

I keep this screenshot on my phone as I always forget bank numbers on the E6

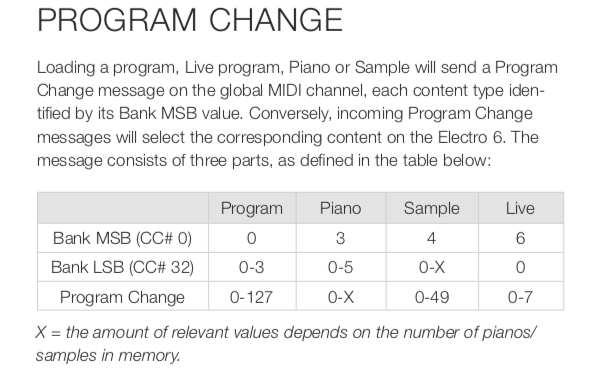

The attachment Nord Bank Prog.png is no longer available

I think your App isn't handling Bank MSB/LSB correctly

Hallo vcfvca,

MIDI programs have 128 values. Some programs interpret MIDI as values from 0-127 others (e.g. like Ableton live) from 1-128. In the iOS or Android you can switch this modes by tapping on the "MIDI(1-128)" button in the program calculator view. On the Desktop app I have not implement this feature until
yet.

Regards Marcel
