Nord Foot Trigger :) Factory Spy Shot

[Frantz]

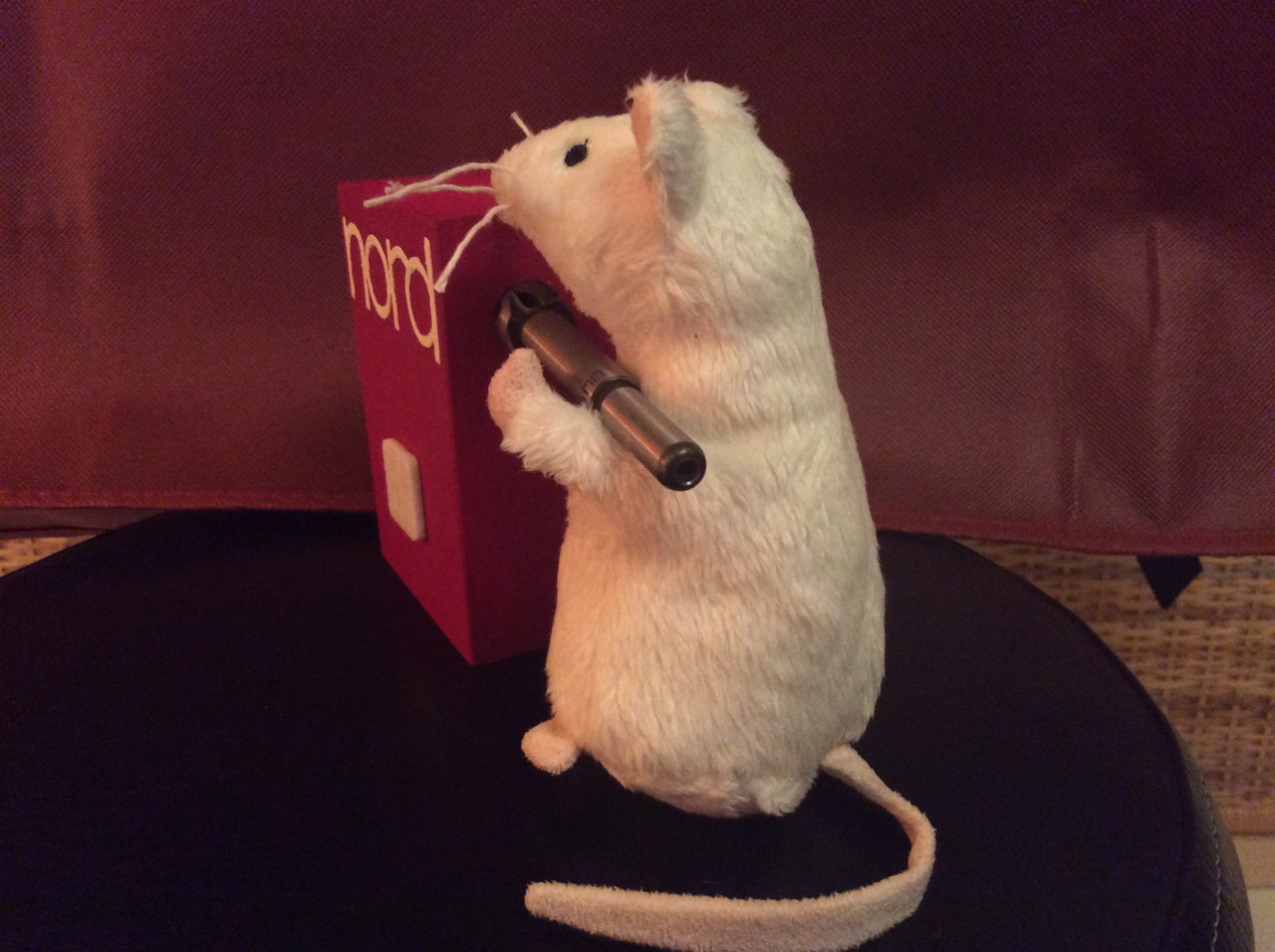

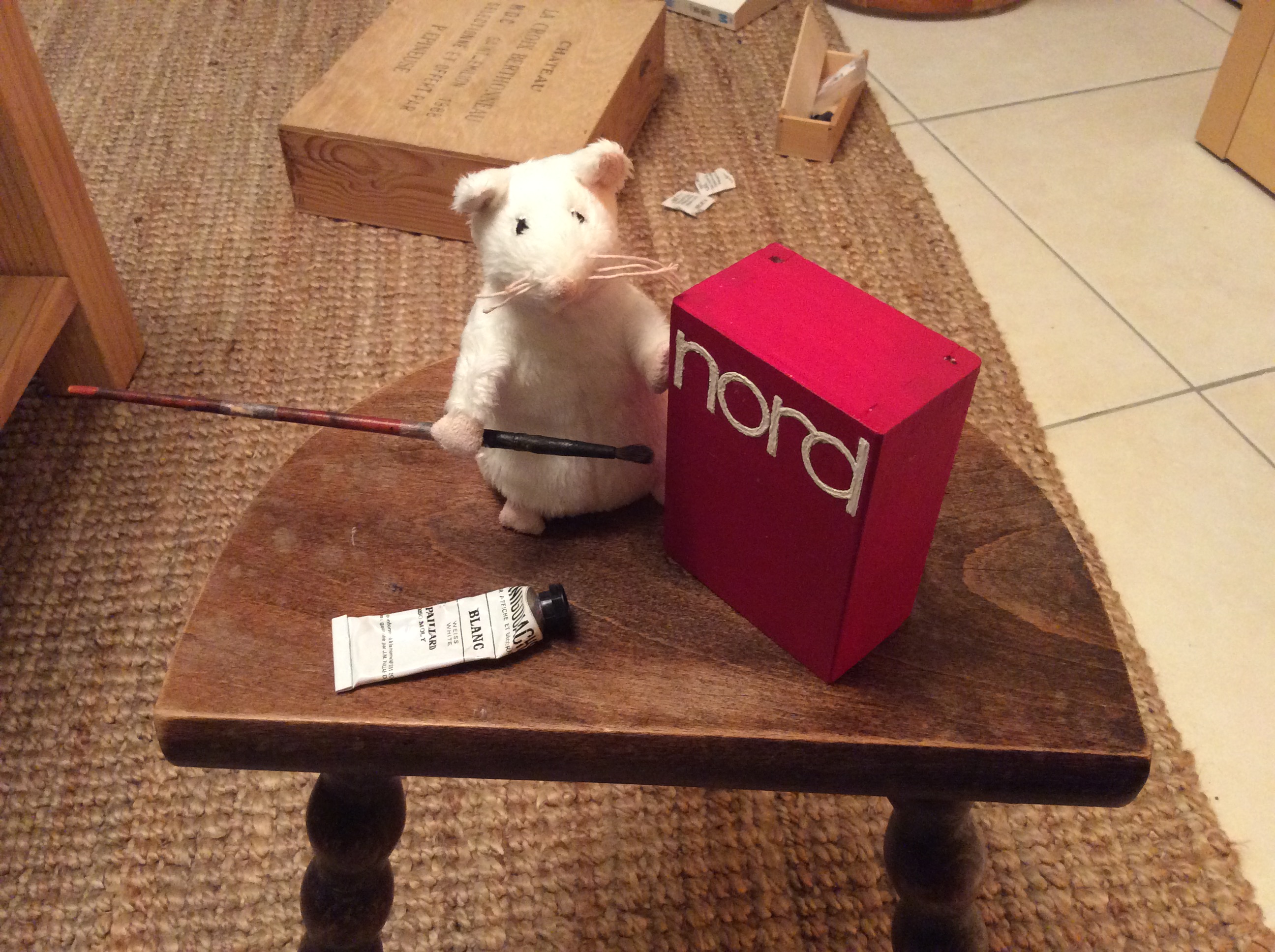

It's not finished yet, it's being painted :


F.

[pablomastodon]

I so envy people who have so much time on their hands...and love them for having chosen to do things like these with this time!!

Bless,

Pablo

[neolithic]

ArfNtz - your creations always entertain us! I loved Mr.Kick, but what next? Keep it up!
post53676.html#p53676

[Frantz]

Hi,

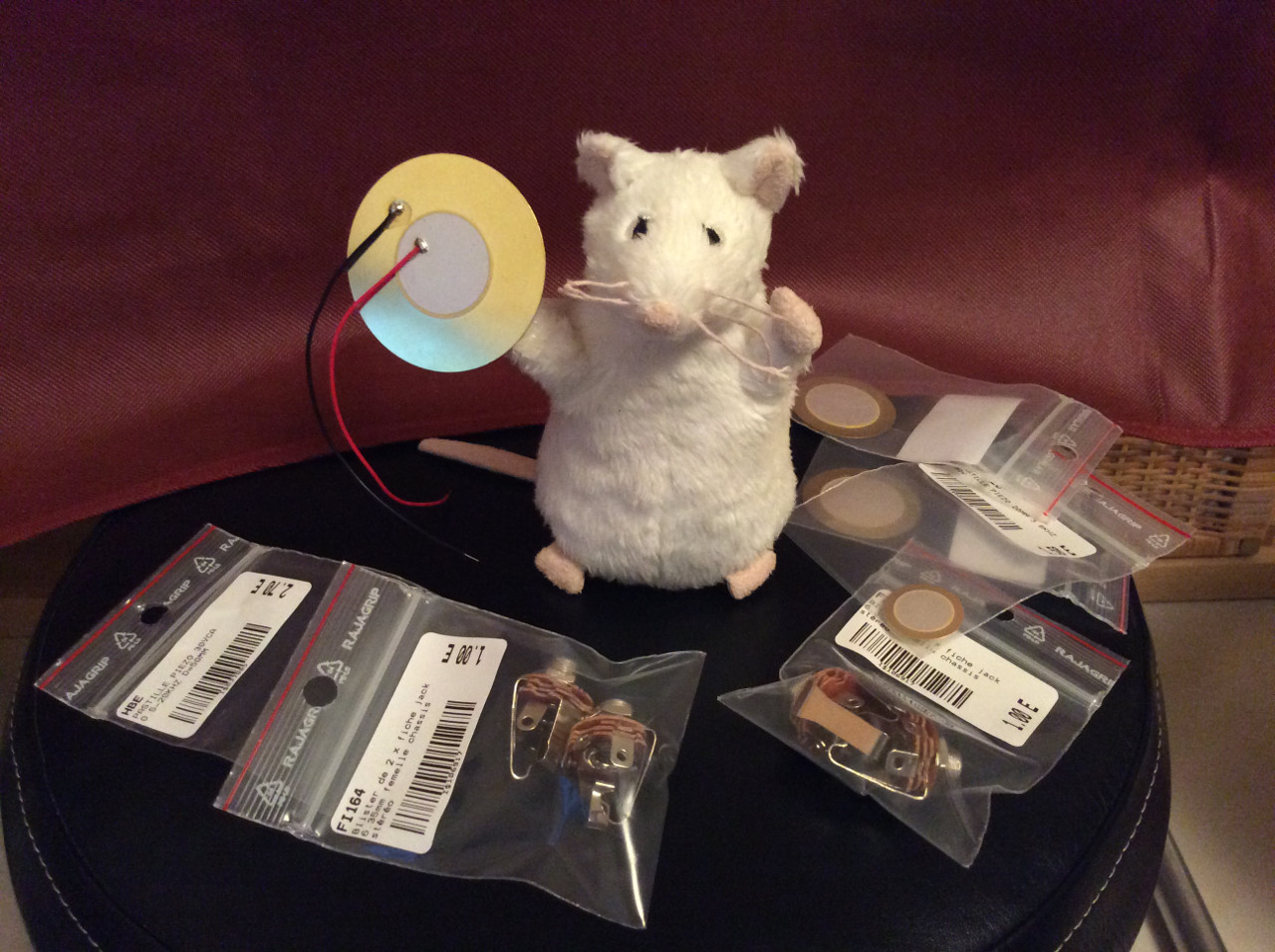

I'm waiting for the delivery of piezo transducers : 2 € each, and jack socket : 0.80 € each.

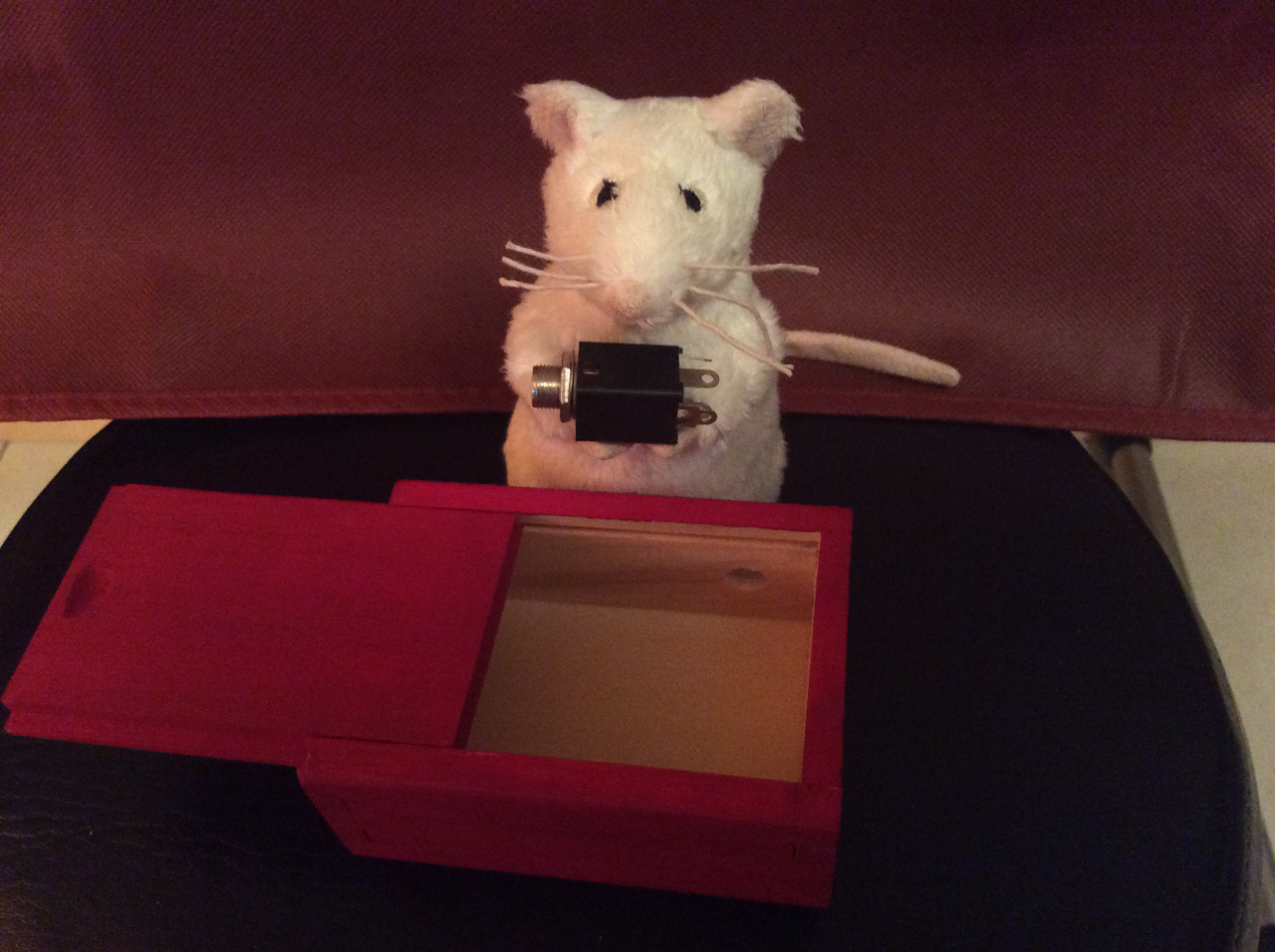

The little wood box comes from a shop in France names "Cultura" : 2.99 €.
The little white pad is 0.05 € (2 € for a set of 40).

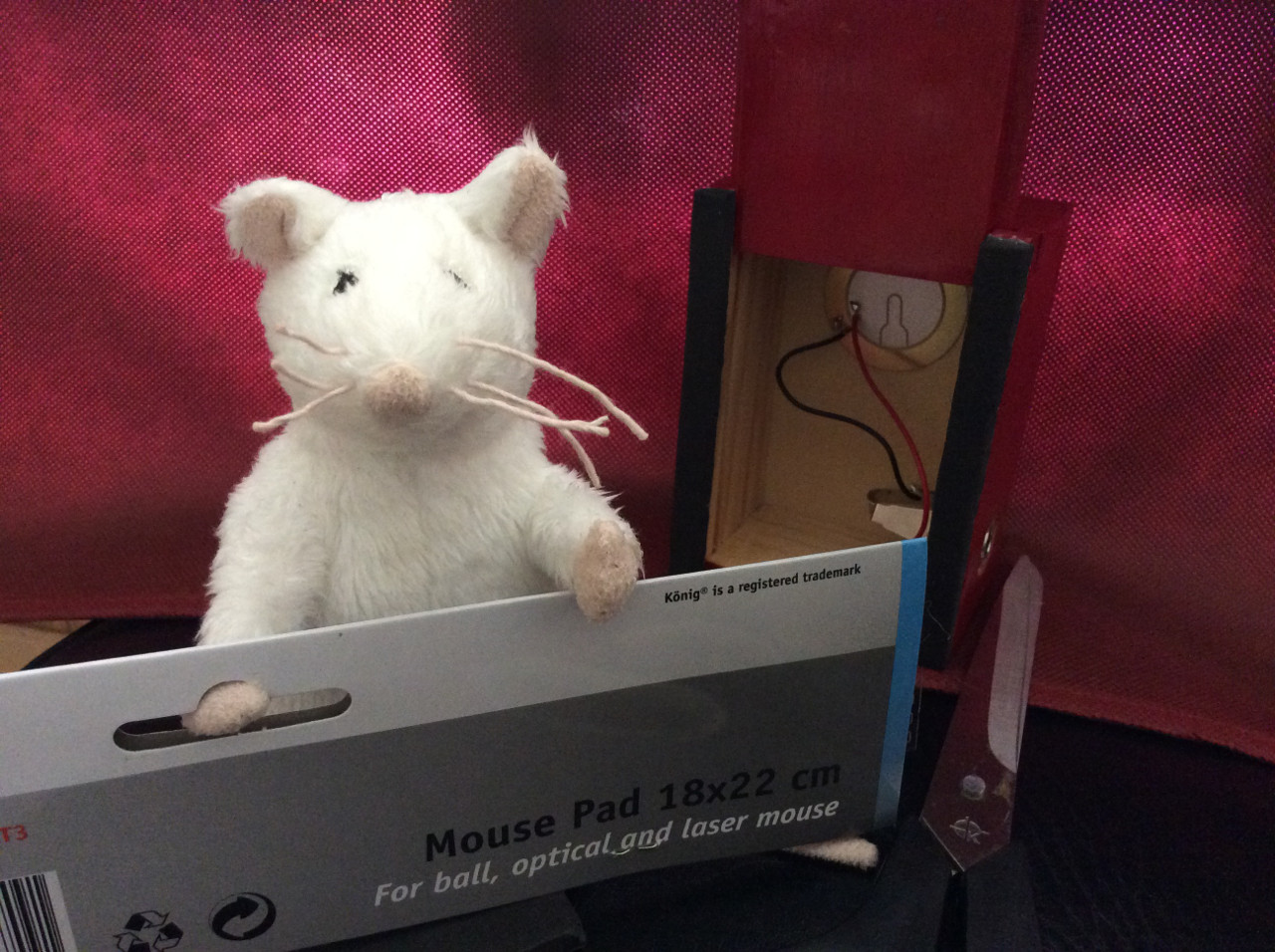

Add some double side adhesive to fix the piezzo inside the box.
Add some wires ( from a dead electronic device )

=> That makes a trigger for approximately 6 €.

( and I do some paint with my daughter, which is unvaluable )

Tools needed :
A driller, 16 mm flat drill burr, a 10 mm normal drill burr
A soldering iron

It's simple to make and requires no skill, and little money.
Connected to a mic input it sounds like a kick drum stompbox, I'm looking for a second hand Nord Drum.

I really encourage everyone playing with a stompbox and hope this can help someone into making one.






Cheers,
F.

[Frantz]

Hi,

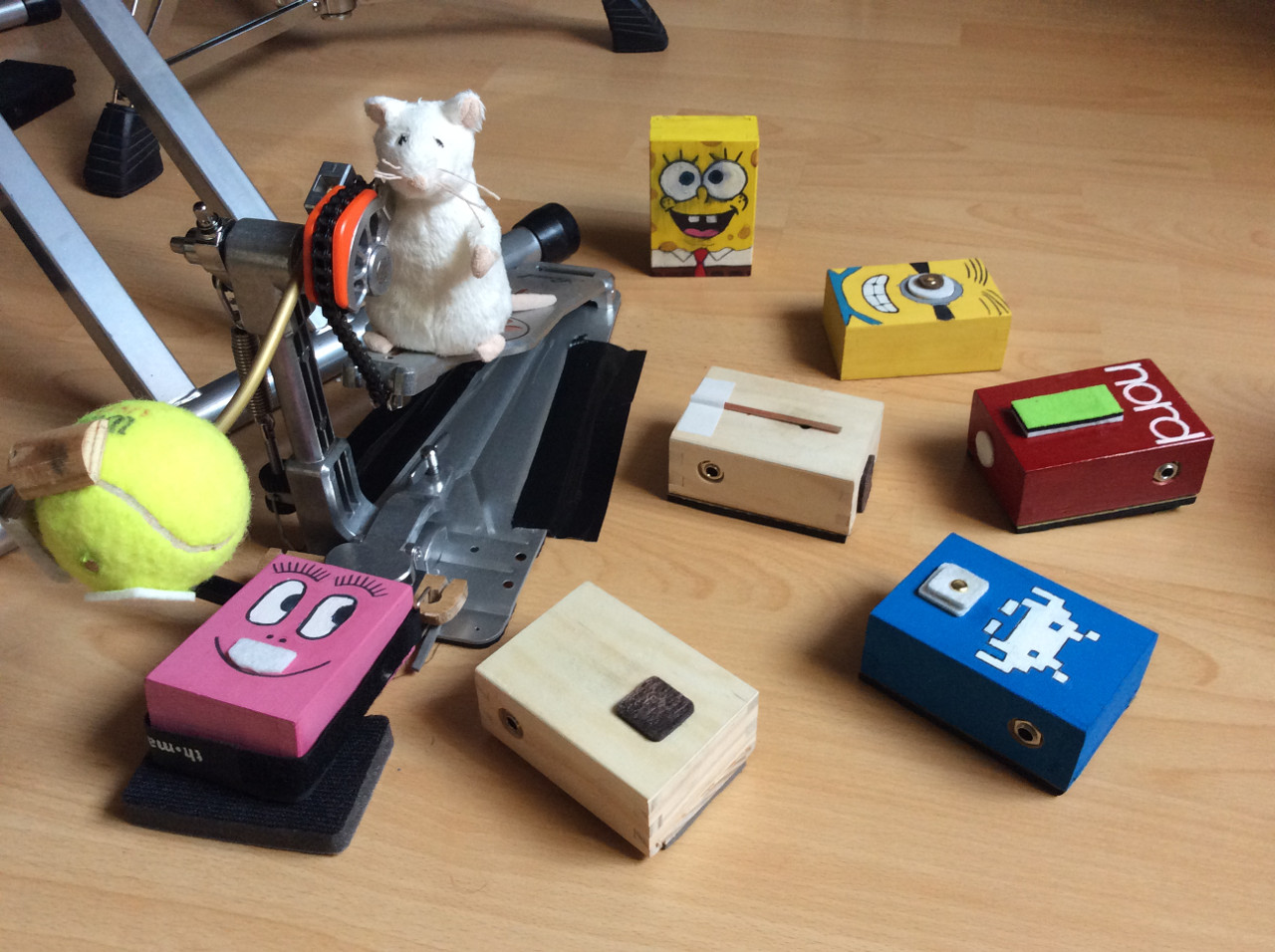

Here are some other ideas.

Next step will be with a Nord Drum and pad (hand) triggers I hope ...

Cheers,
F.





[neolithic]

That mouse appears to be doing a thumbs up and winking in one shot!
That's quite a range you have now...
