I recently purchased a Nord 4D to go along with my Kurzweil and am looking to use both onstage. I am looking for suggestions on the best way to configure my setup. I have a QSC K12 for my stage monitor/amp and will be sending to a PreSonus board for the main PA. Any help would be much appreciated.
Thanks!!!
Rick
Live Stage Setup Suggestions
-
WMDKeys
- Posts: 1
- Joined: 12 May 2014, 17:35
- 11
- Your Nord Gear #1: Nord Electro 4

- DJKeys
- Patch Creator
- Posts: 2178
- Joined: 11 Apr 2011, 17:11
- 15
- Your Nord Gear #1: Nord Stage 3
- Your Nord Gear #2: Nord Wave 2
- Location: Las Vegas
- Has thanked: 434 times
- Been thanked: 884 times

Re: Live Stage Setup Suggestions
I have a similar setup with two keyboards, and here is how I run it:
Nord Stage 2, Access Virus TI2, and Zoom G3 (Guitar processor) stereo out to Ashly LX-308B Line Mixer.
Main Stereo outs of the mixer to DBX 215S stereo EQ->Ashly CLX-52 stereo compressor->both inputs of a QSC K-10 for stage monitor
Unprocessed Sub Outs of the Ashly mixer go to two channels of the Allen and Heath wiz3 16 channel FOH mixer.
Very compact setup with two small footprints.
Nord Stage 2, Access Virus TI2, and Zoom G3 (Guitar processor) stereo out to Ashly LX-308B Line Mixer.
Main Stereo outs of the mixer to DBX 215S stereo EQ->Ashly CLX-52 stereo compressor->both inputs of a QSC K-10 for stage monitor
Unprocessed Sub Outs of the Ashly mixer go to two channels of the Allen and Heath wiz3 16 channel FOH mixer.
Very compact setup with two small footprints.
Last edited by DJKeys on 12 May 2014, 20:42, edited 1 time in total.
Nord Stage 3
Nord Wave 2
Yamaha U3
iMac i7 Sequoia
Fender Studio Pro 8
Nektar T4
Drawmer DL 241
Focusrite ISA Two
Focusrite Clarett 8 Pre
- Mr_-G-
- Former Team Member
- Posts: 4760
- Joined: 18 Aug 2012, 16:48
- 13
- Your Nord Gear #1: Nord Stage 2
- Has thanked: 1470 times
- Been thanked: 1275 times
Re: Live Stage Setup Suggestions

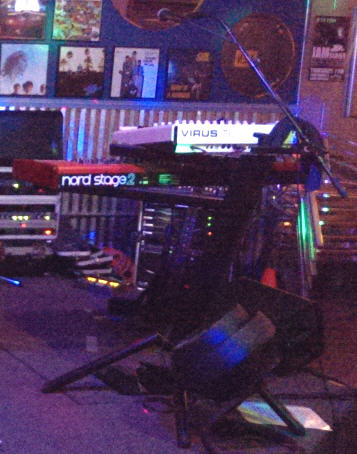

What is that apparently round thing on the floor? Light? Monitor? Cheers.
- DJKeys
- Patch Creator
- Posts: 2178
- Joined: 11 Apr 2011, 17:11
- 15
- Your Nord Gear #1: Nord Stage 3
- Your Nord Gear #2: Nord Wave 2
- Location: Las Vegas
- Has thanked: 434 times
- Been thanked: 884 times

Re: Live Stage Setup Suggestions
That is the bass player's fan-
