Hello, I got a Nord stage 4 and perhaps a SUP keyboard stand. I'm not entirely sure if it's an official Nord, but it looks very similar to this:
p86399/https://www.nordkeyboards.fr/accessoire ... nt-p86399/

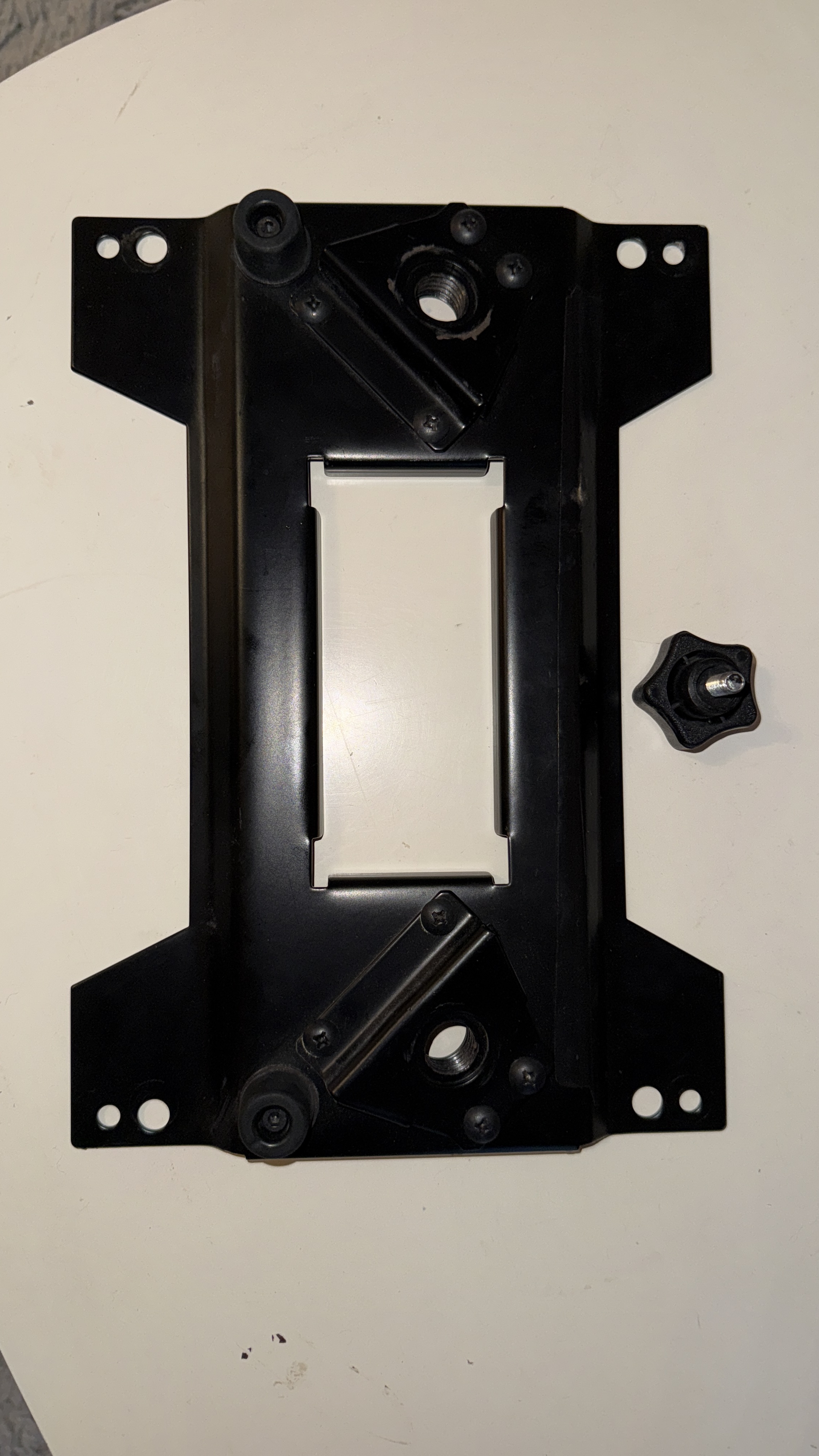

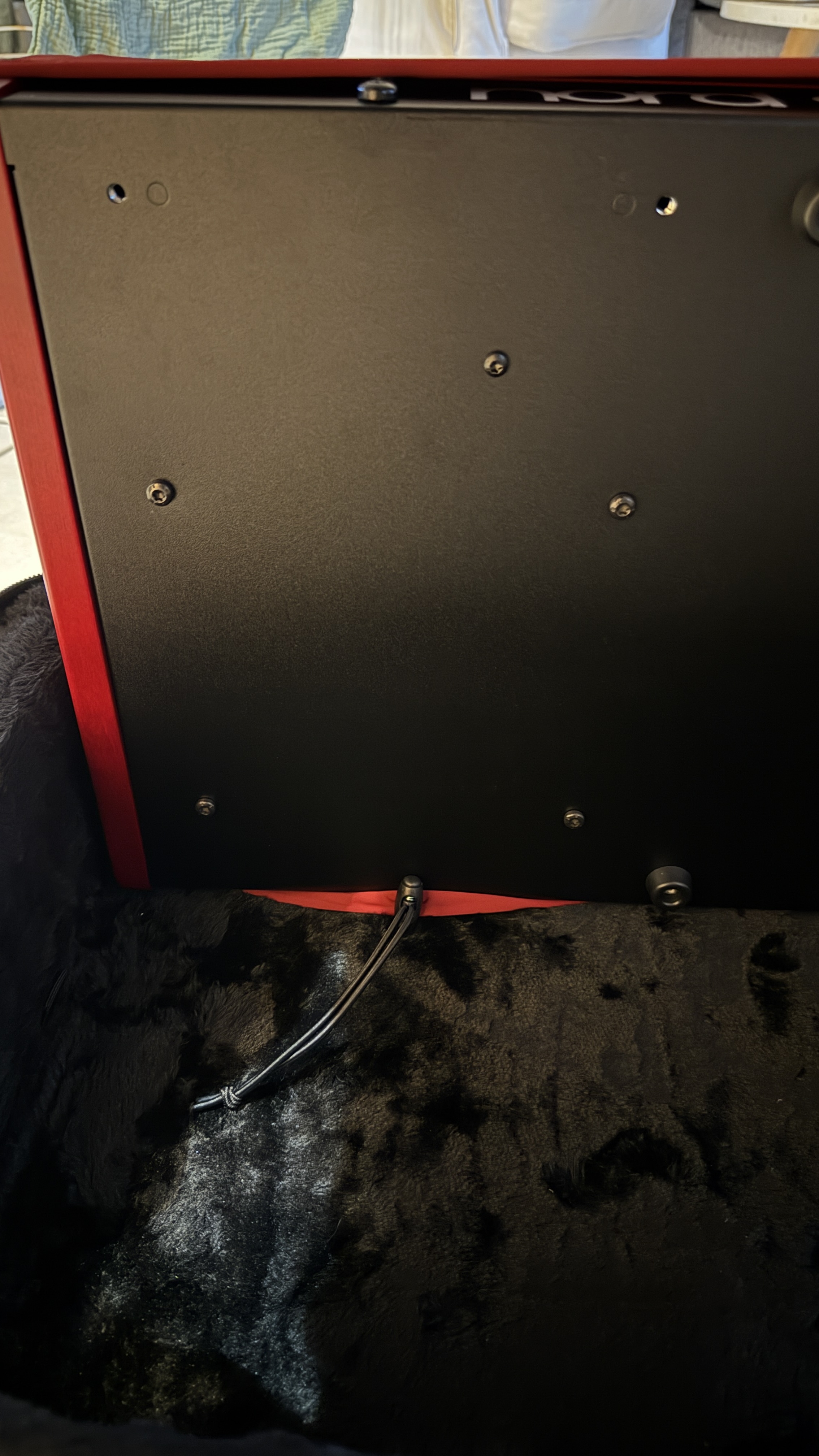

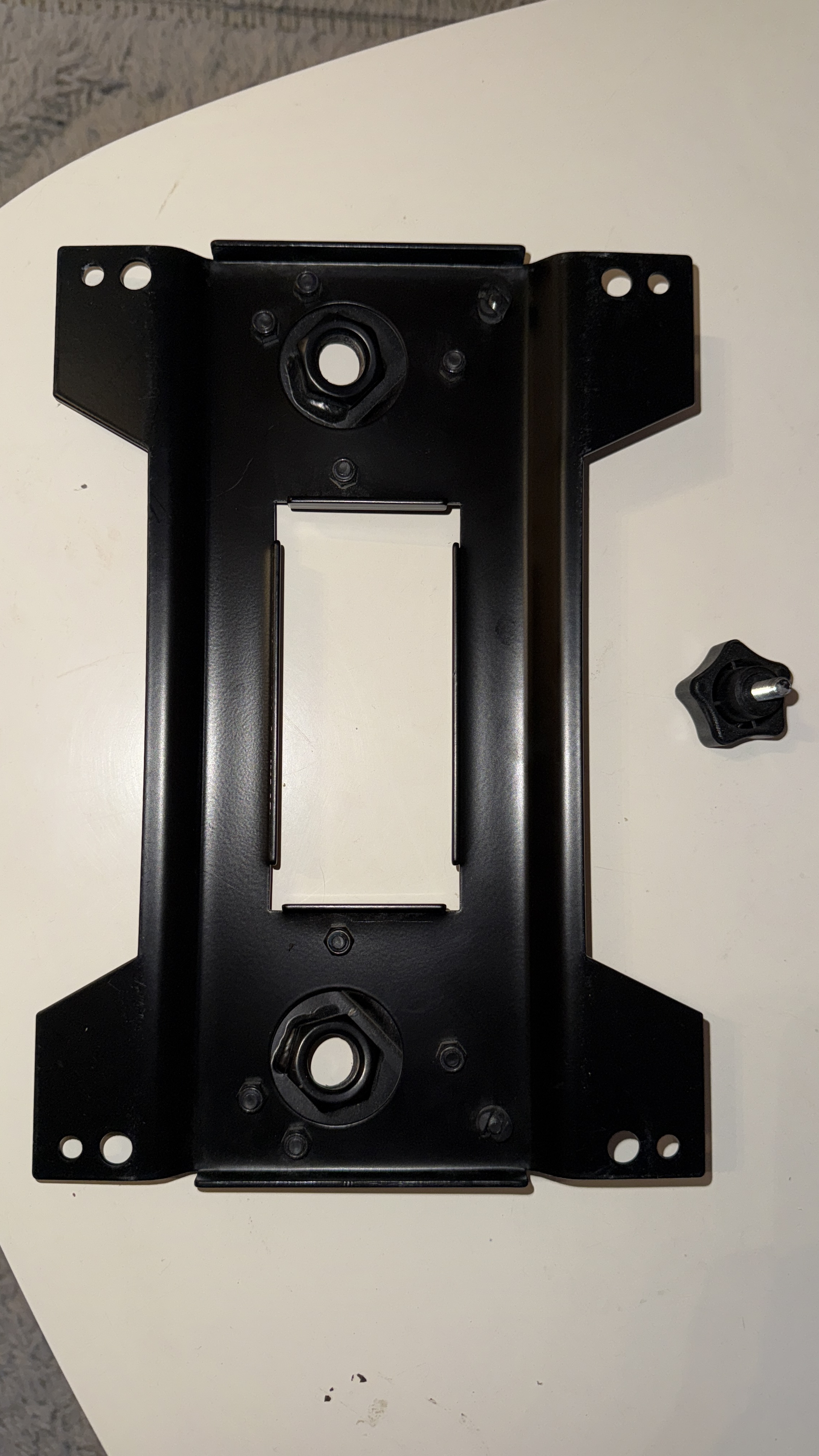

However, I don't have any assembly instructions, so I have no way to verify the model. Can you tell me if you think it's an official Nord and therefore could fit my Stage 4 88? Indeed, I have plenty of screw holes, but some already have screws in them... See the photos.
So can I unscrew 4 of them (2 on each side) to fit to the in the two metal plates?
Thank you in advance for your help.
On the bottom of the instrument there must be a pair of unused five holes, nuts (four for the legs and one for the strut), prepared just for mounting the stand.
I am attaching a picture of part of the bottom of the NS4C where one of the four holes and also other holes-nuts for the Half Moon Switch can be seen.
It is not wise to dismantle the screws, they hold the keyboard and electronic modules.
Is the NS4 really in your picture and which model and Rev?

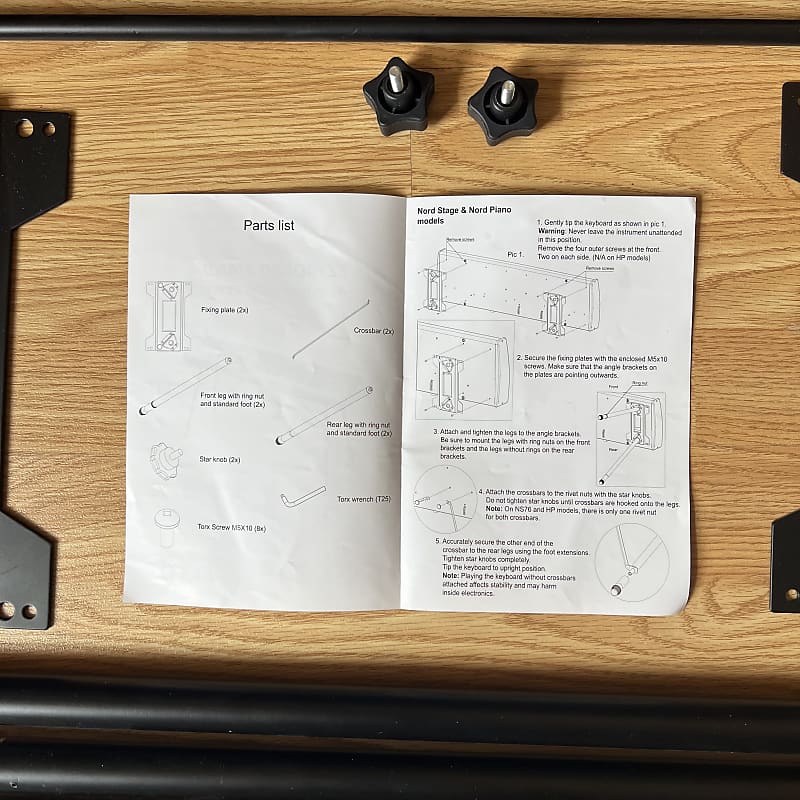

I found this pic of Nord Keyboard Stand EX assembly instructions on a Reverb sale, hope it can help (apparently you need to remove some of the existing screws on the front side and replace them with the ones provided with the stand, which are M5x10 so I guess same size but longer)
