Control pedal /B3 / NE6D......nope !
Posted: 25 Jul 2025, 01:46
by ch79431
Hi all:
I just bought a Yamaha FC7 control/volume pedal for my 6d.
It works well......except for the organ section.
The B3 volume doesn't reset to zero when it's fully 'reclined'. Its pretty close to silence...but you can still hear it.
Nord support says the 6D doesn't have a built-in calibration function.
They suggested a few work-arounds....but it didn't help.
The pedal is great other- wise.....it also worked just fine with a Yamaha S 80
Has anyone else had this problem ??
Thx
Re: Control pedal /B3 / NE6D......nope !
Posted: 25 Jul 2025, 02:34
by Rusty Mike
That is actually the function of a traditional organ swell pedal. On a real B3, the pedal never goes to zero. The organ engine is programmed to respond in that authentic way.
Re: Control pedal /B3 / NE6D......nope !
Posted: 25 Jul 2025, 10:40
by Schorsch
Exactly, it's not a problem but a feature and implemented that way by design, to mimic the behaviour of a real Hammond tonewheel organ. I was therefore surprised that Nord support suggested work arounds for this and did not tell that this is the exact behaviour as intended
Re: Control pedal /B3 / NE6D......nope !
Posted: 25 Jul 2025, 10:48
by maxpiano
ch79431 wrote: ↑25 Jul 2025, 01:46
Hi all:
I just bought a Yamaha FC7 control/volume pedal for my 6d.
It works well......except for the organ section.
The B3 volume doesn't reset to zero when it's fully 'reclined'. Its pretty close to silence...but you can still hear it.
Nord support says the 6D doesn't have a built-in calibration function.
They suggested a few work-arounds....but it didn't help.
The pedal is great other- wise.....it also worked just fine with a Yamaha S 80
Has anyone else had this problem ??
Thx

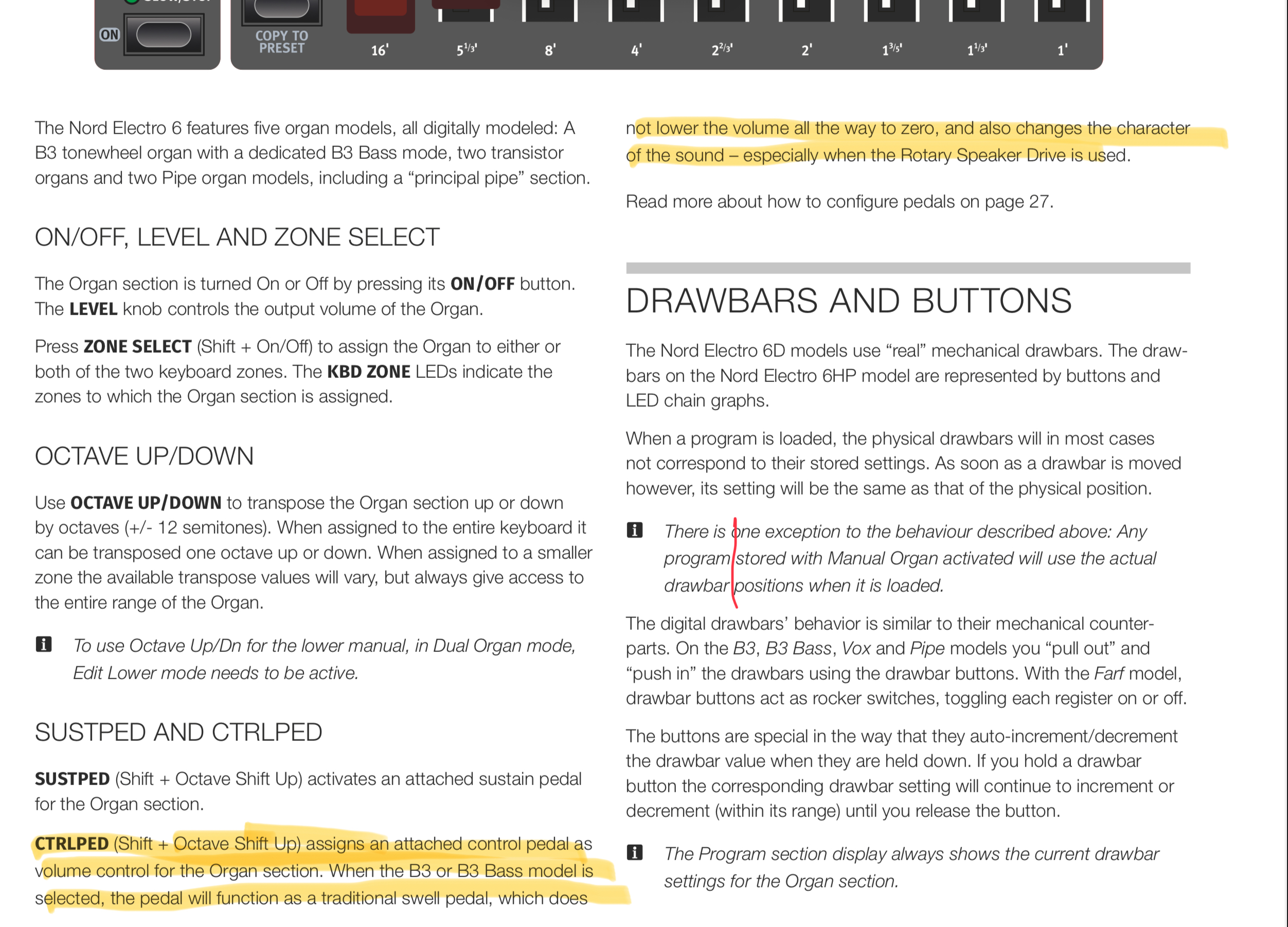

The problem is not the pedal or the NE6, but not reading the manual (or not carefully enough)
- IMG_2039.jpeg (1.51 MiB) Viewed 296 times
Re: Control pedal /B3 / NE6D......nope !
Posted: 26 Jul 2025, 00:11
by ch79431
Yes....guilty I am....Of not seeing that in the manual !! There it was ..hiding in plain sight...
Thx for those replies everyone.
Appreciated and interesting
