Yamaha DXR12

Postby greenpaint » 26 Jun 2012, 14:57

Hi all, :wave:

New NE3 owner here with my first post!

After my long awaited purchase of said board, I've been looking at a single active stage wedge and the suspects all started to raise their heads, QSC, EV, JBL and Mackie. Looking at the NAMM show back in January there seems to be a half decent offering from Yamaha. The DXR12. Does anyone here run one or tried one? They are cheaper than most but look strong in terms of output and build quality.....


One slight worry is the line out. I'm probably being a little blonde (i am...before anyone has a blondist comment) but how would I run a line out to the FOH desk?

I play in a six piece rock/swing band, small/medium sized gigs and I do not need anyone else in my monitor.

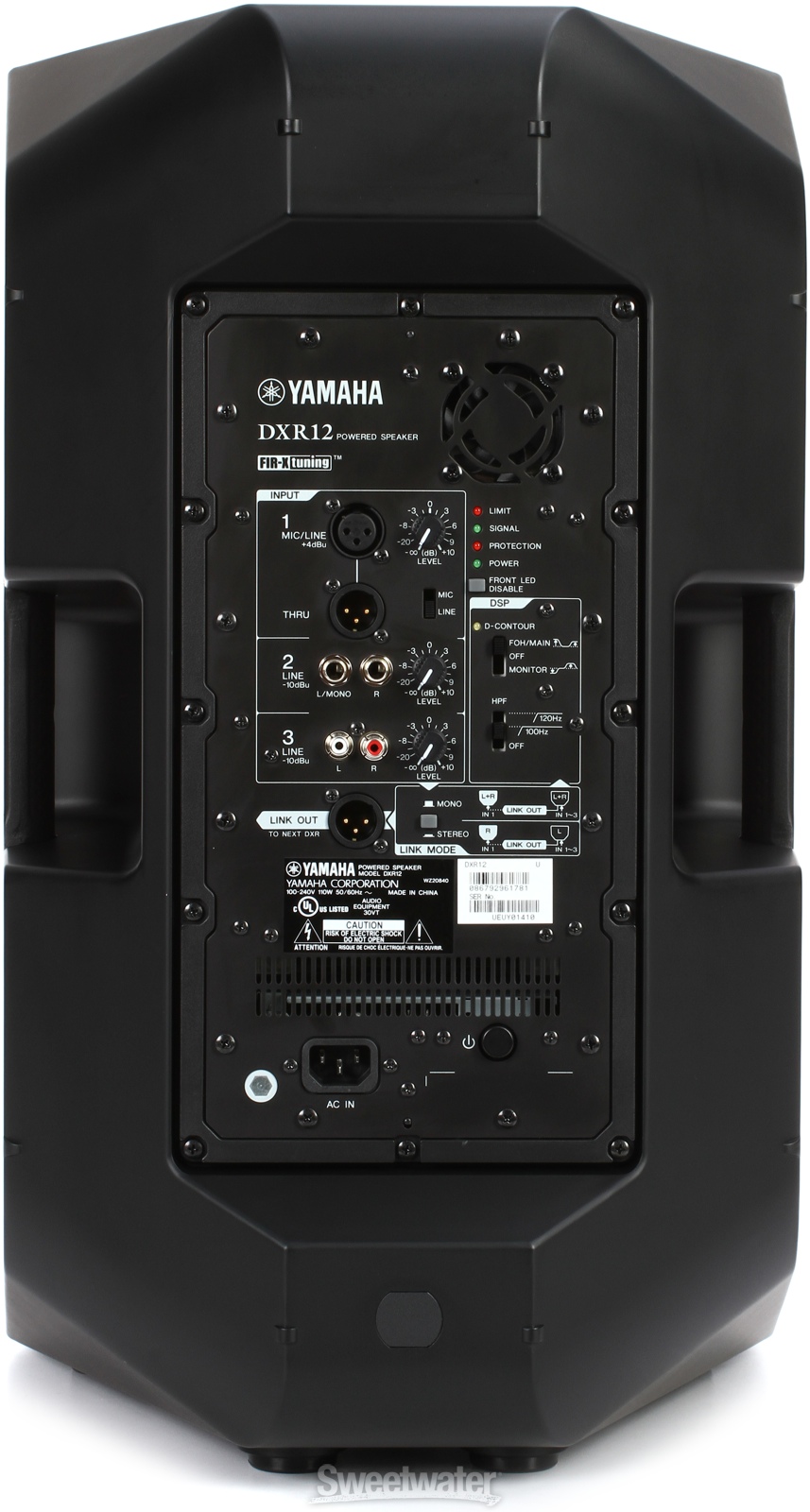

Am I being a idiot? All thats on the panel in terms of a line out has been called a 'LINK OUT' for linking up another DXR12 for stereo FOH pa set ups.

Thanks all
Last edited by greenpaint on 31 Jul 2012, 12:33, edited 2 times in total.
greenpaint

Posts: 4
Joined: 18 Jun 2012, 23:08
Has thanked: 0 time
Been thanked: 0 time
Your Nord Gear #1: Nord Electro
Top

Yamaha DXR12


Sponsor

Top

Re: Yamaha DXR12

Postby greenpaint » 27 Jun 2012, 18:26

Don't worry everyone! hold all your responses!

I'm going for a QSC10. I've gone over it with a very helpful chap @ GAK UK and the Yam DXR12 looks like a non-starter. More of a direct FOH/dj speaker. Why would they produce the DXR range without a line out?
Last edited by greenpaint on 31 Jul 2012, 12:33, edited 3 times in total.
greenpaint

Posts: 4
Joined: 18 Jun 2012, 23:08
Has thanked: 0 time
Been thanked: 0 time
Your Nord Gear #1: Nord Electro
Top

Re: Yamaha DXR12

Postby Michael Wright » 28 Jun 2012, 04:20

greenpaint wrote:Don't worry everyone! Why would they produce the DXR range without a line out?


I have actually heard very good things about this series of speakers. Comparable or better that the QSC 10. AS far as line out, it really depends on your set-up. I use two Yamaha Cabs but line out from my sub mix to the board and the speakers. To each his own. Cheers M
Last edited by Michael Wright on 31 Jul 2012, 12:33, edited 3 times in total.
User avatar
Michael Wright
Donator

Posts: 184
Joined: 03 Dec 2011, 00:14
Country: Canada
Has thanked: 32 times
Been thanked: 40 times
Top

Re: Yamaha DXR12

Postby RedLeo » 28 Jun 2012, 05:58

greenpaint wrote:Don't worry everyone! hold all your responses!

I'm going for a QSC10. I've gone over it with a very helpful chap @ GAK UK and the Yam DXR12 looks like a non-starter. More of a direct FOH/dj speaker. Why would they produce the DXR range without a line out?


This conclusion surprises me. On paper this looks like a well-thought out and well-specified unit much in keeping with its obvious competitors. I've had a look at the manual, and as far as I can see, the link out should work perfectly well as a line out. In fact its dual mode of operation allowing you to optionally link two of these units together in a stereo configuration looks pretty neat to me. Unless it really sounds sub-standard (unlikely for a Yamaha), I wouldn't rule this unit out. It's not cheap, and its price point would suggest a reasonable quality unit. If it can hold its own against the established stuff like the QSCs in terms of volume and sound quality, the wide range of features and built-in 3 way mixer could be very tempting. I'll be very interested in seeing some user reviews of it as and when.
Last edited by RedLeo on 31 Jul 2012, 12:33, edited 2 times in total.
RedLeo
Patch Creator

Posts: 336
Joined: 17 May 2011, 11:40
Has thanked: 25 times
Been thanked: 167 times
Top

Re: Yamaha DXR12

Postby greenpaint » 02 Jul 2012, 10:36

RedLeo wrote:I've had a look at the manual, and as far as I can see, the link out should work perfectly well as a line out. In fact its dual mode of operation allowing you to optionally link two of these units together in a stereo configuration looks pretty neat to me.


Thanks Redleo...but where exactly does it state the Link Out has dual functionality as Line Out. I must have missed that.
Last edited by greenpaint on 31 Jul 2012, 12:33, edited 2 times in total.
greenpaint

Posts: 4
Joined: 18 Jun 2012, 23:08
Has thanked: 0 time
Been thanked: 0 time
Your Nord Gear #1: Nord Electro
Top

Re: Yamaha DXR12

Postby RedLeo » 02 Jul 2012, 22:16

Yamaha haven't really bothered to explain the Link out properly in the manual. However, the Link output *is* just a Line Out. You can link it to another DXR12, but you can link it to anything else just as easily.

If you look in the Block diagram (page 84) you can see that it is labelled "Link Out (Line)" and that it is just the output of the whole mixer section, which is presumably exactly what you need it to be as a Line Out.

If you look on Page 8 under Section 13 "Link Mode Switch (DXR series)" and look at the chart, you will see that under "Link Mode - Output of the DXR - Mono" it confirms that the Link Out contains a mix of all the input signals.

Page 8 Section 12 "Link Out Jack (DXR series)" quote: "Signals at the LINK OUT jack are line-level. Set the MIC/LINE switch on the linked DXR series speaker to LINE".

- Although it does not say directly, this is a pretty clear indication that the Link Out is just a standard Line Out with a fancy title.

On Page 5 it states: "XLR-type connectors are wired as follows (IEC60268 standard): pin 1: ground, pin 2: hot (+), and pin 3: cold (-)".

- This is the standard wiring for XLR balanced Line Outs and therefore the Link Out will be compatible with all standard XLR balanced Line Ins.

Note: To do this, you would need to set the Link Mode switch to Mono. The "Stereo" setting is indeed a special configuration for connecting two DXRs in stereo only.

So the dual functionality is via the stereo/mono Link Mode switch.
Last edited by RedLeo on 31 Jul 2012, 12:33, edited 3 times in total.
RedLeo
Patch Creator

Posts: 336
Joined: 17 May 2011, 11:40
Has thanked: 25 times
Been thanked: 167 times
Top

Re: Yamaha DXR12

Postby greenpaint » 03 Jul 2012, 11:18

Thanks for that Red, good to have some clarification there.

I also got a reply from Yamaha.....it reads....

Hi Chris

Thank you for your enquiry regarding the DXR12 powered speaker. To take a signal out of your DXR into the FOH desk I can confirm, as you rightly suggested, that the 'LINK OUT' would be the best way to do this. The LINK OUT sends a mixed signal from all the channels.

Yamaha

So there you go. I thought I was being blonde!
Last edited by greenpaint on 31 Jul 2012, 12:33, edited 2 times in total.
greenpaint

Posts: 4
Joined: 18 Jun 2012, 23:08
Has thanked: 0 time
Been thanked: 0 time
Your Nord Gear #1: Nord Electro
Top

Re: Yamaha DXR12

Postby RedLeo » 03 Jul 2012, 18:50

Guess I can learn a thing or two from Yamaha...

Me: Blah...blah...blah...techno-blah..on and on...waffle...and some more...witter...witter..drone...drone...drivel...drone...

Yamaha: Yup.
Last edited by RedLeo on 31 Jul 2012, 12:33, edited 2 times in total.
